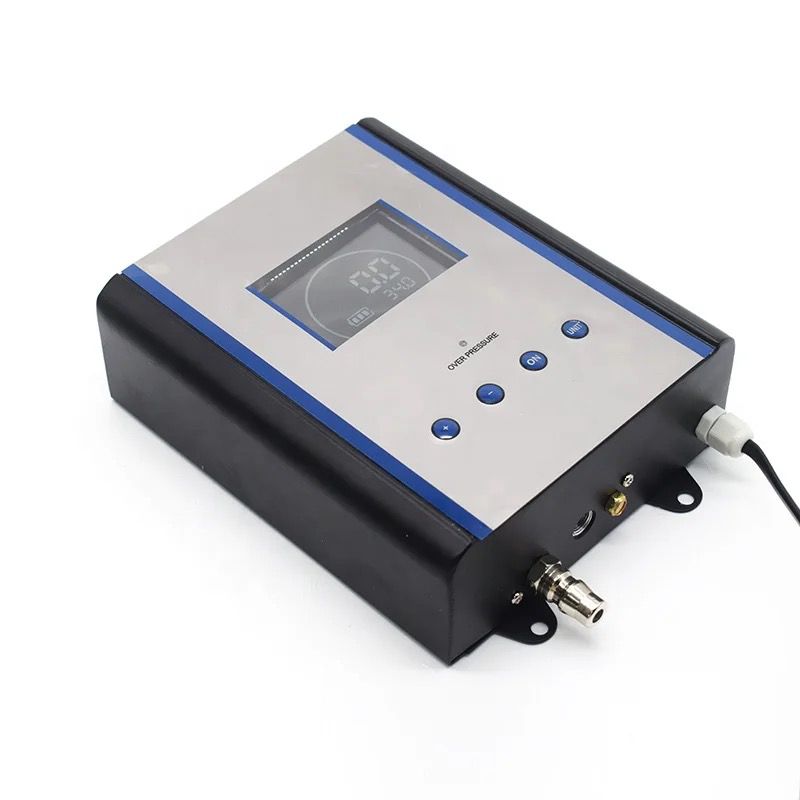

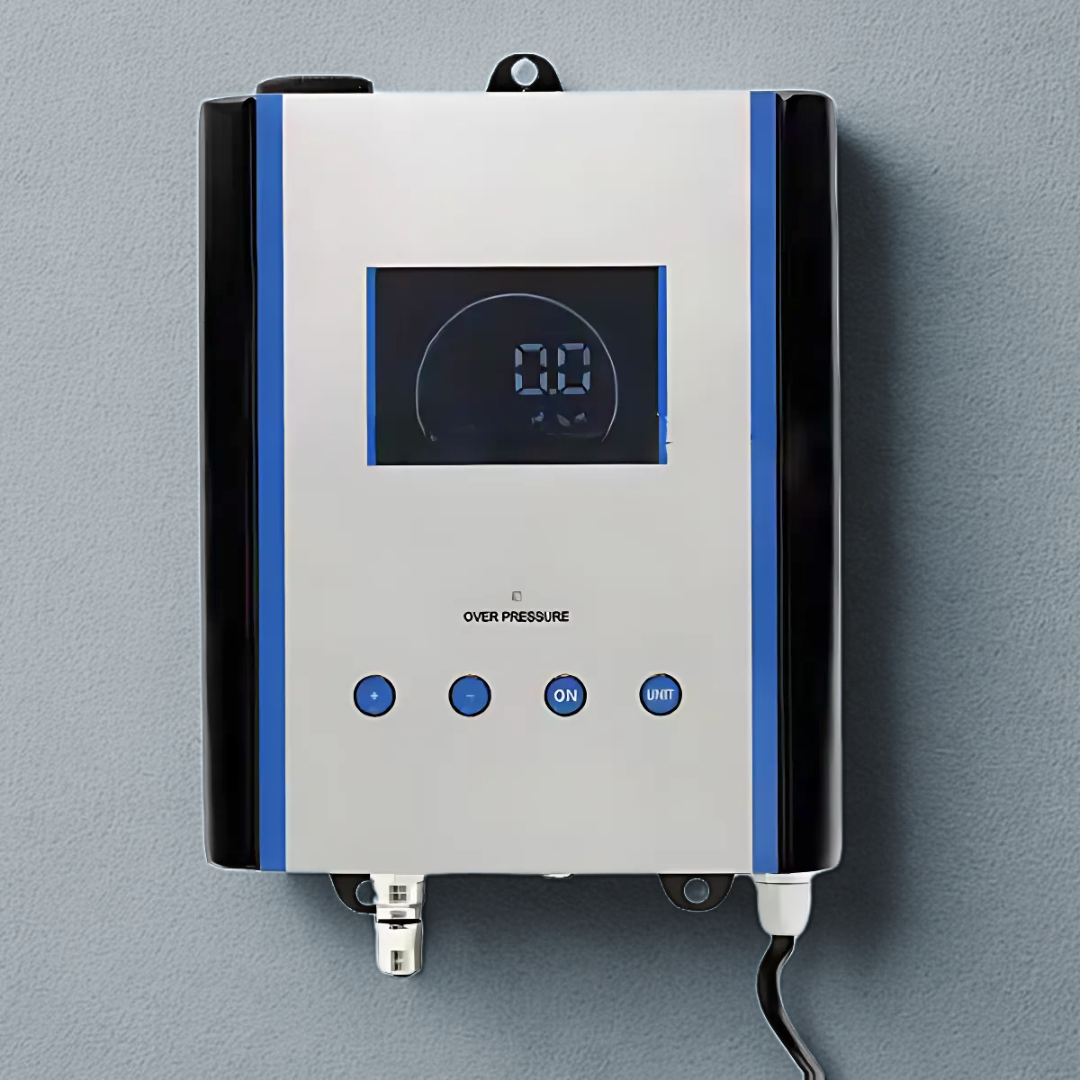

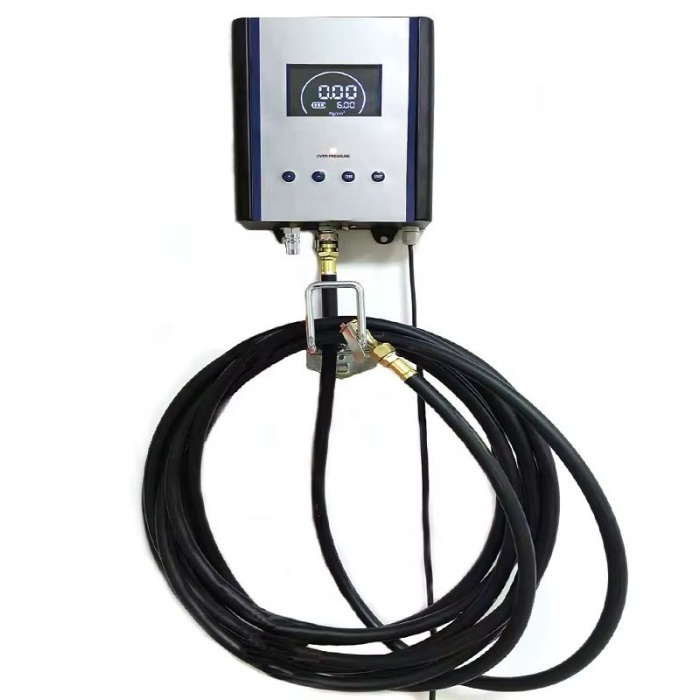

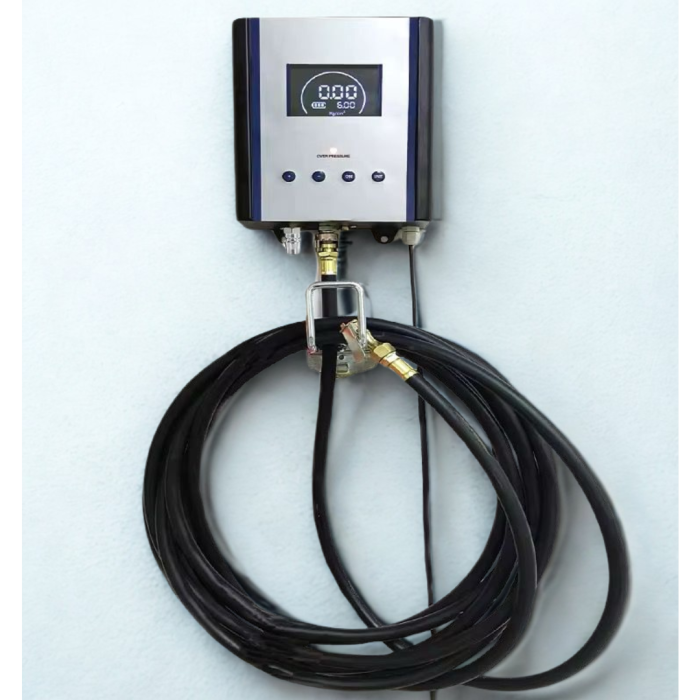

Overview of TheBlackBuddy Air Inflator
Designed for busy bays, the wall-mounted Automatic Air Inflator with LED colour display delivers fast, hands-free tyre inflation for workshops, service stations and fleet garages. Simply key in the desired pressure on the large 3-inch LCD, connect the chuck and, consequently, walk away – the unit inflates, tops-up or bleeds down automatically and stops the moment the target is reached.
Why You’ll Love It
Because every second counts in a service bay, the inflator combines speed with repeatable accuracy. Furthermore, it reduces operator fatigue and, therefore, boosts throughput without compromising safety.
Key Features & Benefits of Air Inflator
Intuitive Operation
- Set-and-forget automation – starts & stops without operator intervention.
- 3-inch colour LCD – clear day- or night-time visibility of set pressure, live tyre pressure and chosen unit.
- Multi-unit display – bar, psi, kPa or kg cm² at the touch of a button.
- High accuracy – ±0.5 – 1 psi keeps customer tyres within spec.
Built for the Workshop
- Rugged metal housing – purpose-built for wall mounting in busy bays.
- 10 m service hose – factory-fitted, rated to 20 bar (300 psi).
- Audible completion alert and, moreover, bright screen indicators.
- Low-maintenance solenoid valves built for harsh shop environments.
Technical Specifications
Performance Parameters
| Input Air Supply | Up to 9.5 kg cm² (135 psi) clean, dry air |
|---|---|
| Output Range | 0 – 8.5 kg cm² | 0 – 15 bar | 0 – 217 psi |
| Accuracy | ±0.5 – 1 psi (±0.03 bar) |
| Resolution | 0.01 bar |
| Pressure Units | bar, psi, kPa, kg cm² (selectable) |
Display, Power & Connections
| Display | 3-inch LED-backlit LCD |
|---|---|
| Hose Length | 10 m, brass compression fitting, 20 bar max |
| Air Connection | ¼-inch quick-coupler |
| Power | 230 V AC, 50/60 Hz (135 cm cord) |
| Operating Temp. | -20 °C to +70 °C |
| Weight | ≈ 20 kg |
Applications of the Air Inflator
Perfect for 2-wheelers, passenger cars, vans and light commercial vehicles. Consequently, it is a smart upgrade for petrol pumps, tyre-service bays and fleet maintenance areas that need quick throughput and repeatable accuracy.
What’s in the Box
- Automatic wall-mounted tyre inflator (pre-wired for 230 V AC)

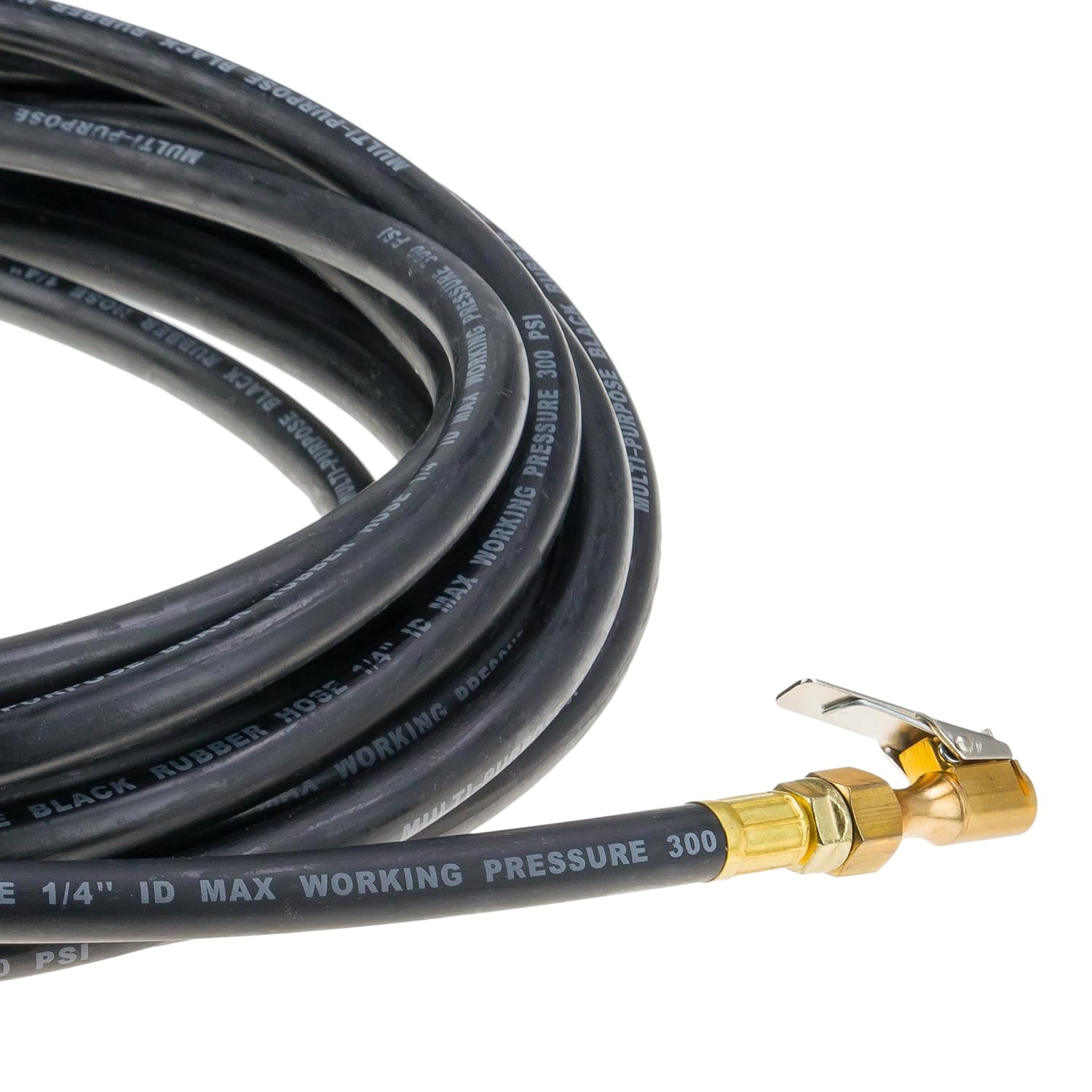

- 10 m service hose with brass chuck & hook
- Wall-mount hardware
- User & installation guide
Serial-numbered for traceability • CE-compliant
